VinTeam HDMI Switch with Audio Extractor 4K 3D HDMI to HDMI and Optical Toslink SPDIF or RCA Audio Output Support PIP for DVD HD Player PS4 Etc
VinTeam
QUANTITY
Follow Us Via These Social Channels
Specification:
HDCP Version: HDCP1.4
HDMI Version: HDMI1.4b
HDMI resolution: 2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support video color format: 24bits/deep color 30bit,36bit
Audio output: 3.5mm Earphone+SPDIF
Max bandwidth: 340MHz
Max baud rate: 10.2Gbps
Input/Output TMDS signal: 0.5-1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p(TTL)
Input cable distance: <5m AWG26 standard cable HDMI
Output cable distance: <5m AWG26 standard cable HDMI
Max working current: 500mA
Operating temperature range: (-15 to +55C)
Operating humidity range: 5 to 90% RH(NO Condensation)
Dimension (LxWxH): 160x75x25(mm)
Weight: 137g
NOTE:
1. Not compatible with Netflix and YouTube video websites.
2. This switch can only be used for HD display devices with HDMI interface. DON'T use it with HDMI to DVI converters or display devices with DVI interface.
3. When select to 5.1 Channel mode, whether the SPDIF will output 5.1 channel audio depends on whether the input source contains 5.1 channel audio or not:
a). If the input source contains, SPDIF OUT interface will output 5.1 channel audio signal while STEREO OUT interface output nothing.
b). If the input source not contains, SPDIF OUT and AUDIO OUT interface are all output 2 channel audio signal.
4. If your source device is 4K@60hz(HDMI 2.0 and HDCP2.2),please set up the resolution to 4K@30hz or 1080p@60hz to use this 3 ports HDMI switch.
How to set the resolution to fit our HDMI switch:
a). Connect your "4k@60hz HDMI 2.0 input" device directly to the TV
b). Then go to setting-picture-resolution(choose "Auto")- HDMI Color Fomat(choose "Auto")

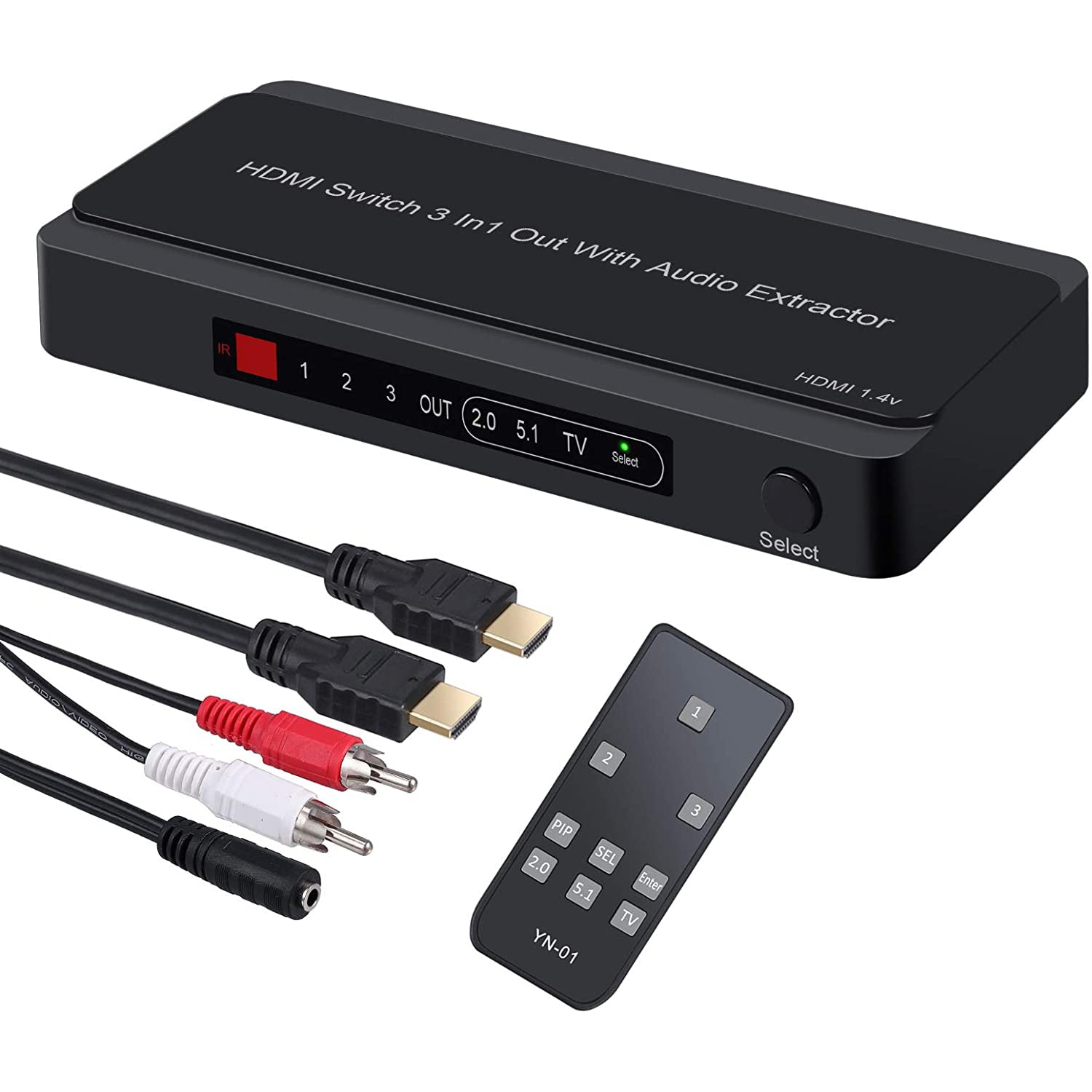

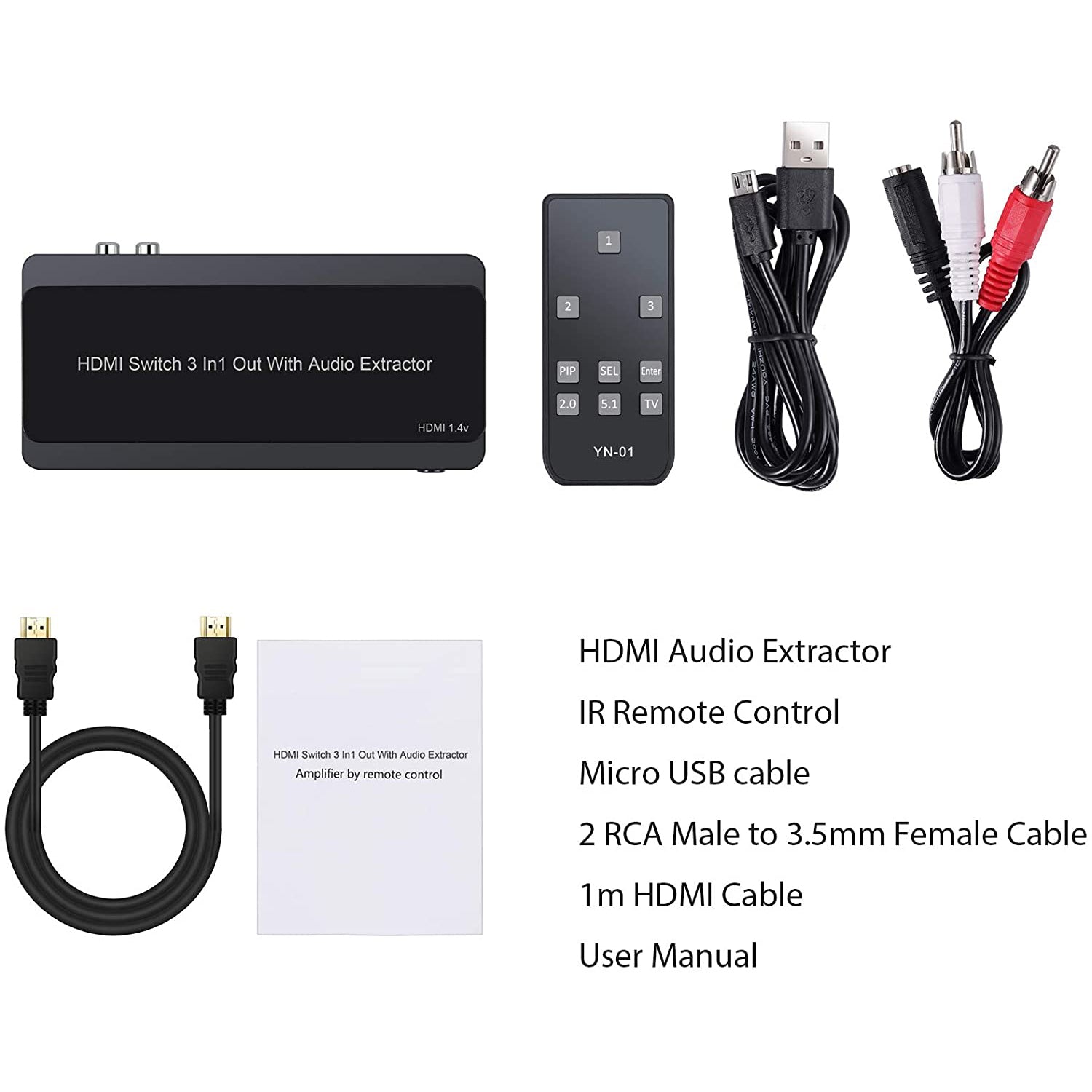

Package Includes:
1 x HDMI Audio Extractor
1 x IR Remote Control
1 x Micro USB cable
1 x 2 RCA Male to 3.5mm Female Cable
1 x 1m HDMI Cable
1 x User Manual
