VinTeam Digital Multimeter 6000 Count TRMS Multimeter AC/DC Voltage/Current NCV Capacitance Temperature Resistance Diode Continuity with 5 Colors Multimeter Leads
VinTeam
QUANTITY
Follow Us Via These Social Channels
Features:

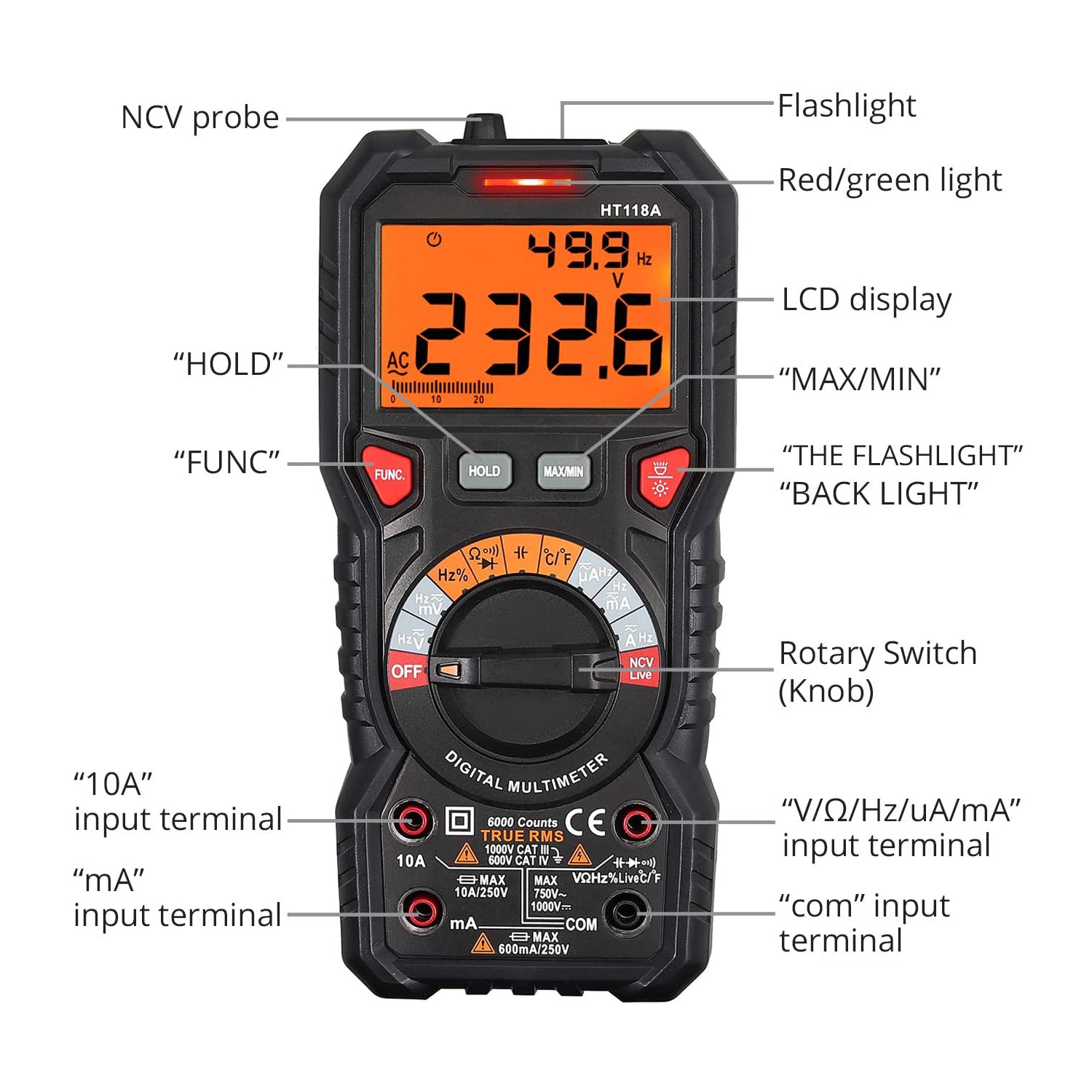

1. Large Screen 3 Line Display: Can show 3 test results on the screen, such as voltage, frequency and analog bar.
2. Input Llight Prompt: When power on, the corresponding input light flashes to prompt the user to insert the input port of the probe.

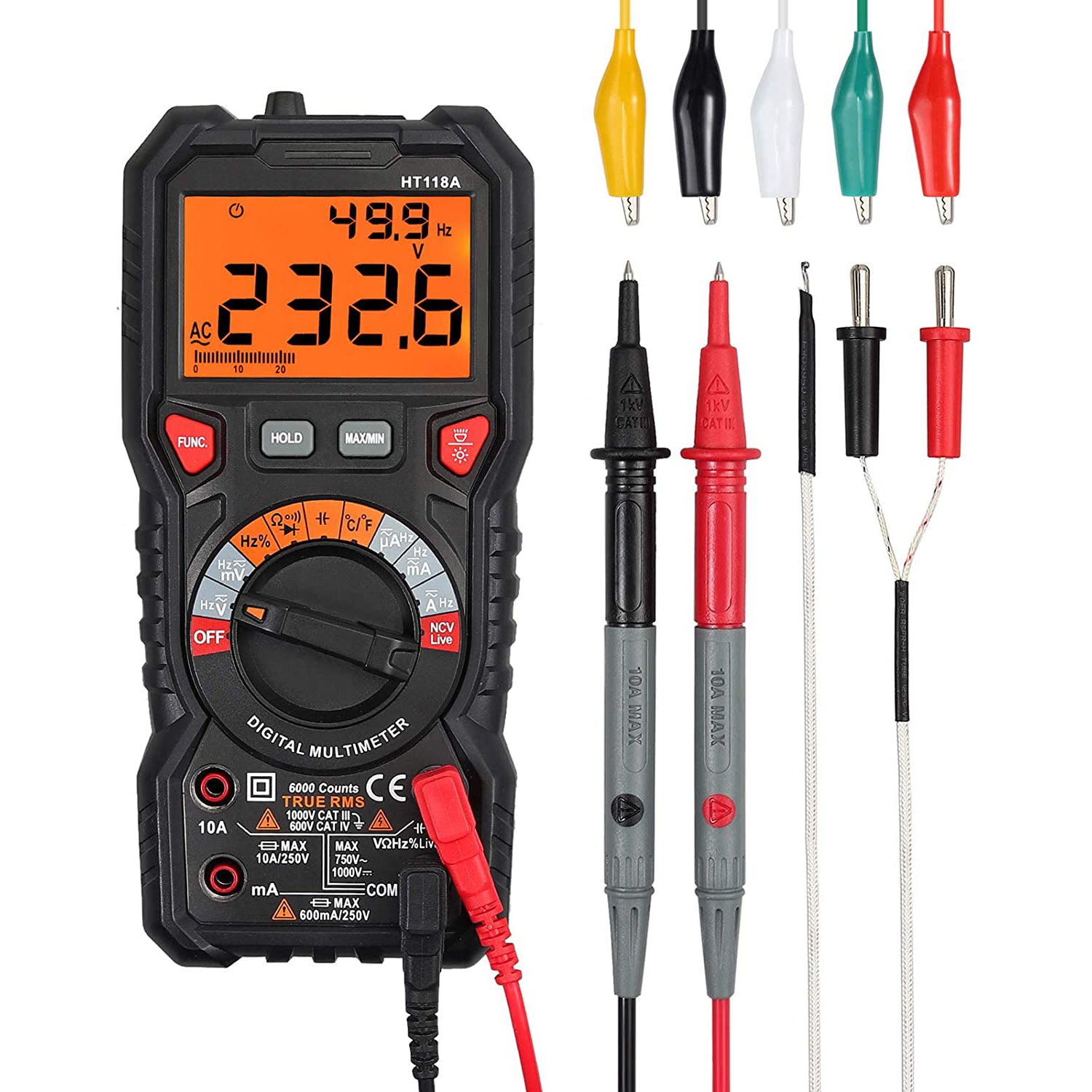

3. 5 Colors Test Leads: Handy for keeping track of wires. Alligator leads are handy for most light electronics works such as experiments, bread boarding, prototyping, etc.
4. High Voltage Prompt Function: When the voltage is greater than 80V or the current is greater than 1A, the orange backlight will light up, prompting the users to be careful.

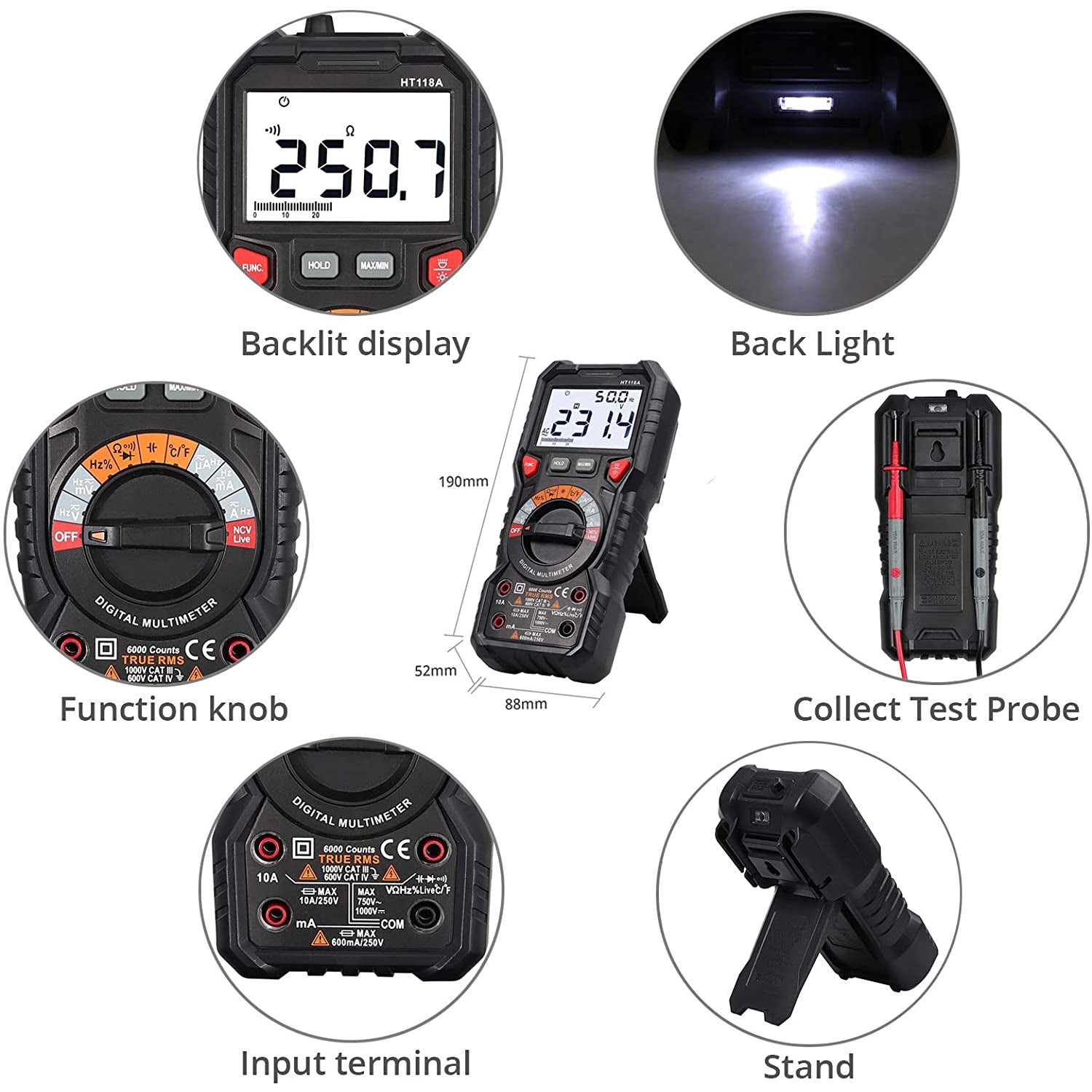

5. Anti-Breaking Stand Design: It features an anti-breaking stand for protection against shocks, squeeze and bumps.
Specifications:
Power Supply: 2 x 1.5V AA (included)
Display: 6000 counts
DC Voltage Range and Accuracy: 600mV/6V/60V/600V ± (0.5%+3), 1000V ±(0.5%+3)
AC Voltage Range and Accuracy: 6V/60V ± (1.0%+5), 600V/750V ± (1.0%+5)
DC Current Range and Accuracy: 60μA/60mA/600mA ± (0.8%+3), 10A ± (1.2%+3)
AC Current Range and Accuracy: 60mA/600mA ± (1%+3), 10A ± (1.5%+3)
Resistance Range and Accuracy: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ /60MΩ ± (0.8%+3)
Capacitance Range and Accuracy: 6nf/60nf/600nf/6uf/60uf/600uf/6MF (±4.0%+3), 100MF ±(5.0%+5)
Frequency Range and Accuracy: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ± (1.0%+3)
Temperature Range and Accuracy: -40℃-1000℃/-40℉-1832℉ ±(1.0%+3)
Duty cycle: 1%~99% ± (1.0% +2)
Safety Rating: EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V CAT IV 600V CE、ROHS
Dimensions: 188mmx 88mm x 58mm

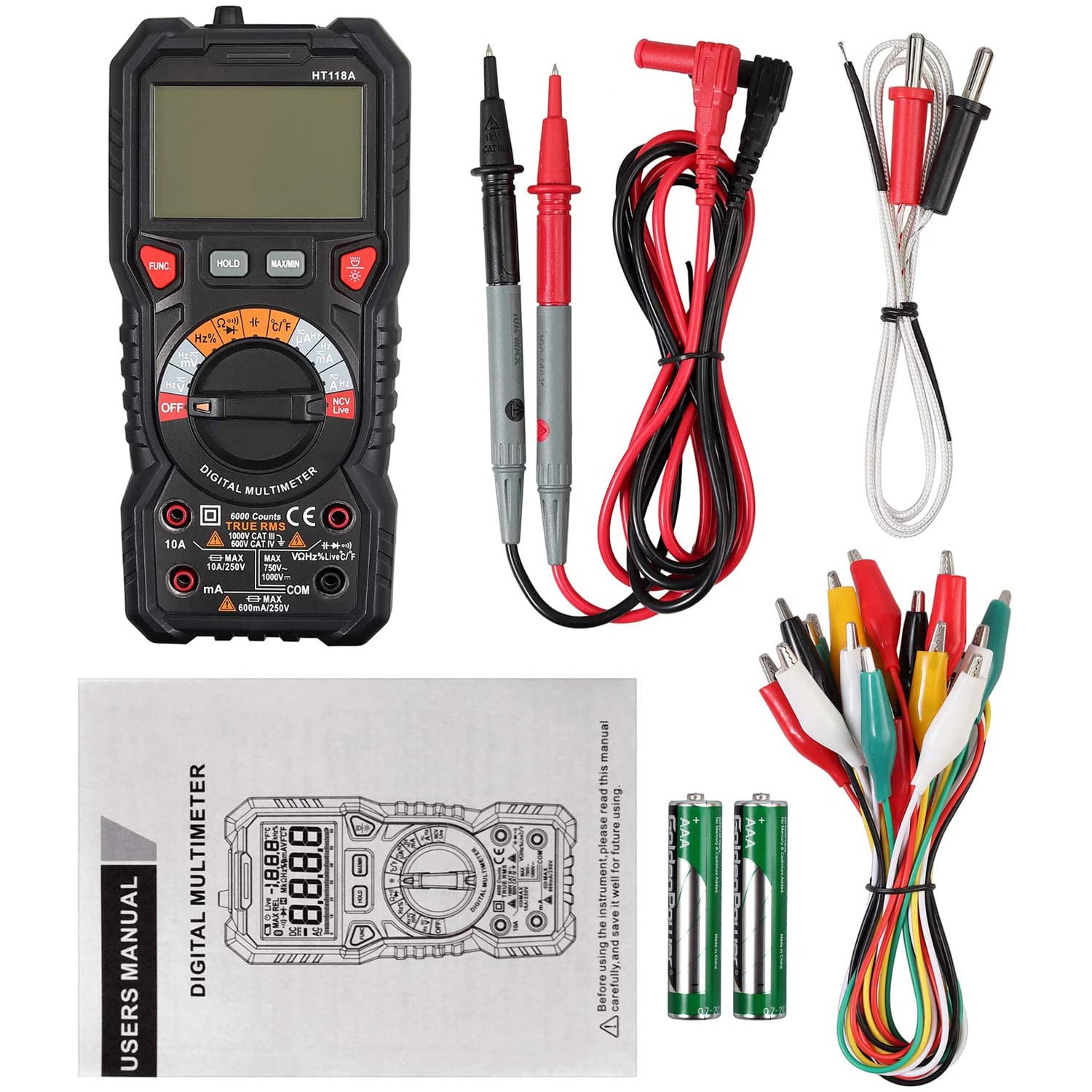

Package Included:
1x Digital Multimeter
1x Test Leads (pairs)
1 x K-Type Temperature Probe
2 x 1.5V AA Battery
1x User's Manual
10 x Test Lead Set with Alligator Clips
