VinTeam Car Paint Coating Thickness Gauge Meter Handheld with Backlight LCD Display for Steel Aluminum Car 0-1500um
VinTeam
QUANTITY
Follow Us Via These Social Channels
Overview:

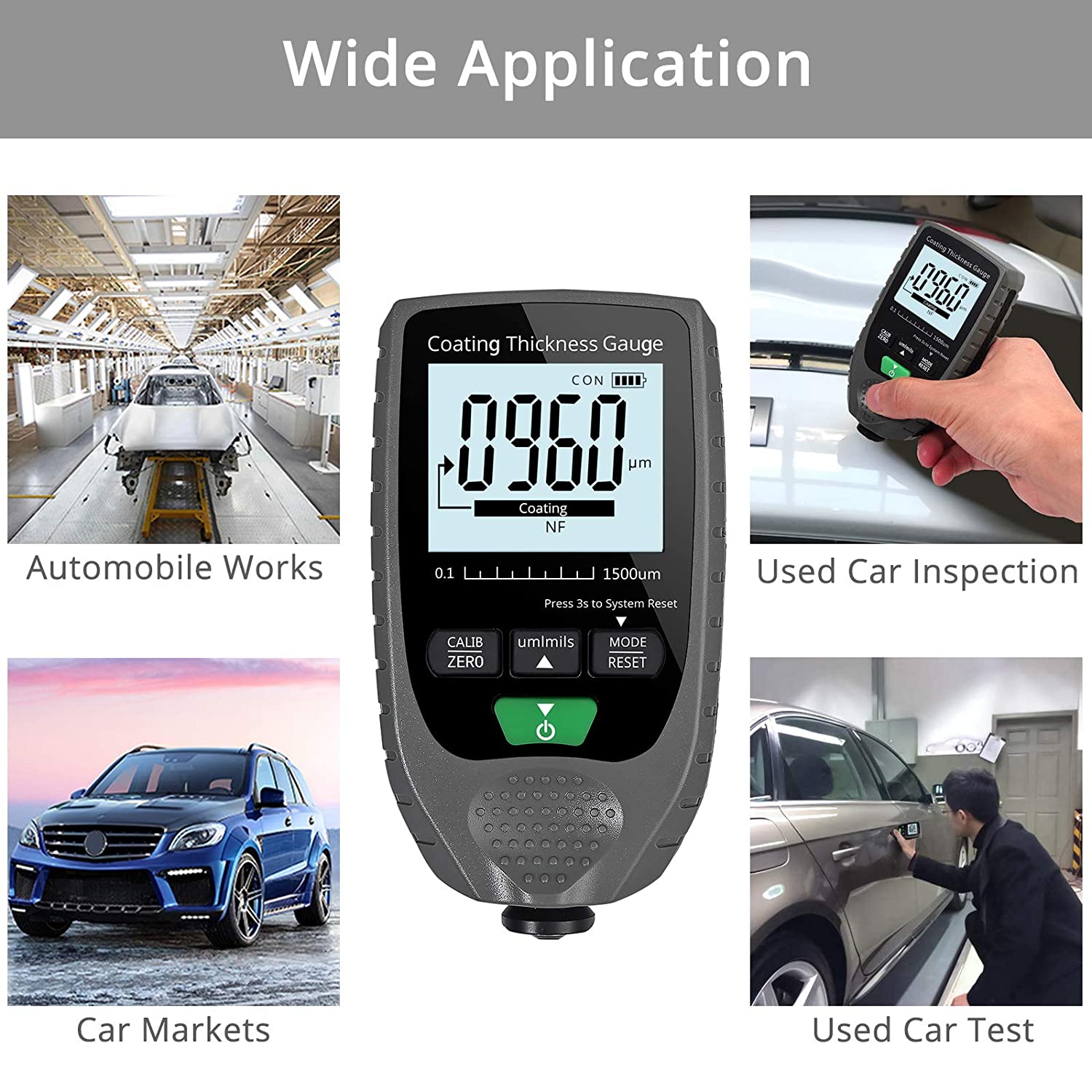

The different thickness of the paint on a used car is probably because of a crash to the car before, which may cause some problems. The thickness gauge measures the thickness of the car to determine if the car is intact and well.

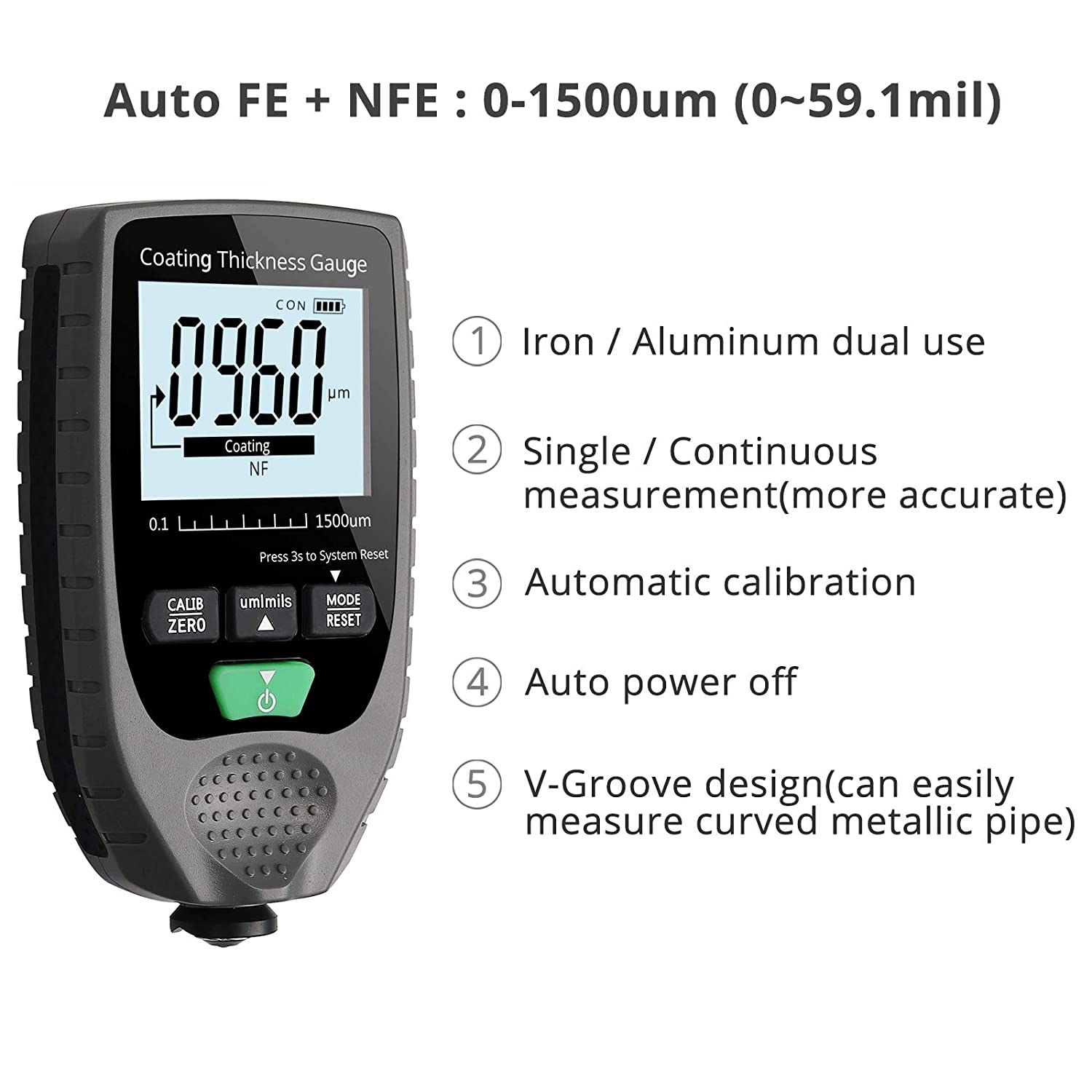

Probe F
Principle: Magnetic Induction
Range: 0~1500um/ 0~59.1mil
Accuracy: ±(3%+2um)/ ±(3%+0.08mil)
Resolution: 0.1um/0.01mil
Minimum thickness of substrate: 0.5mm(0.02”)
Probe N
Principle: Eddy Current
Range: 0~1500um/ 0~59.1mil
Accuracy: ±(3%+2um)/ ±(3%+0.08mil)
Resolution: 0.1um/0.01mil
Minimum thickness of substrate: 0.3mm(0.012”)
Specifications:

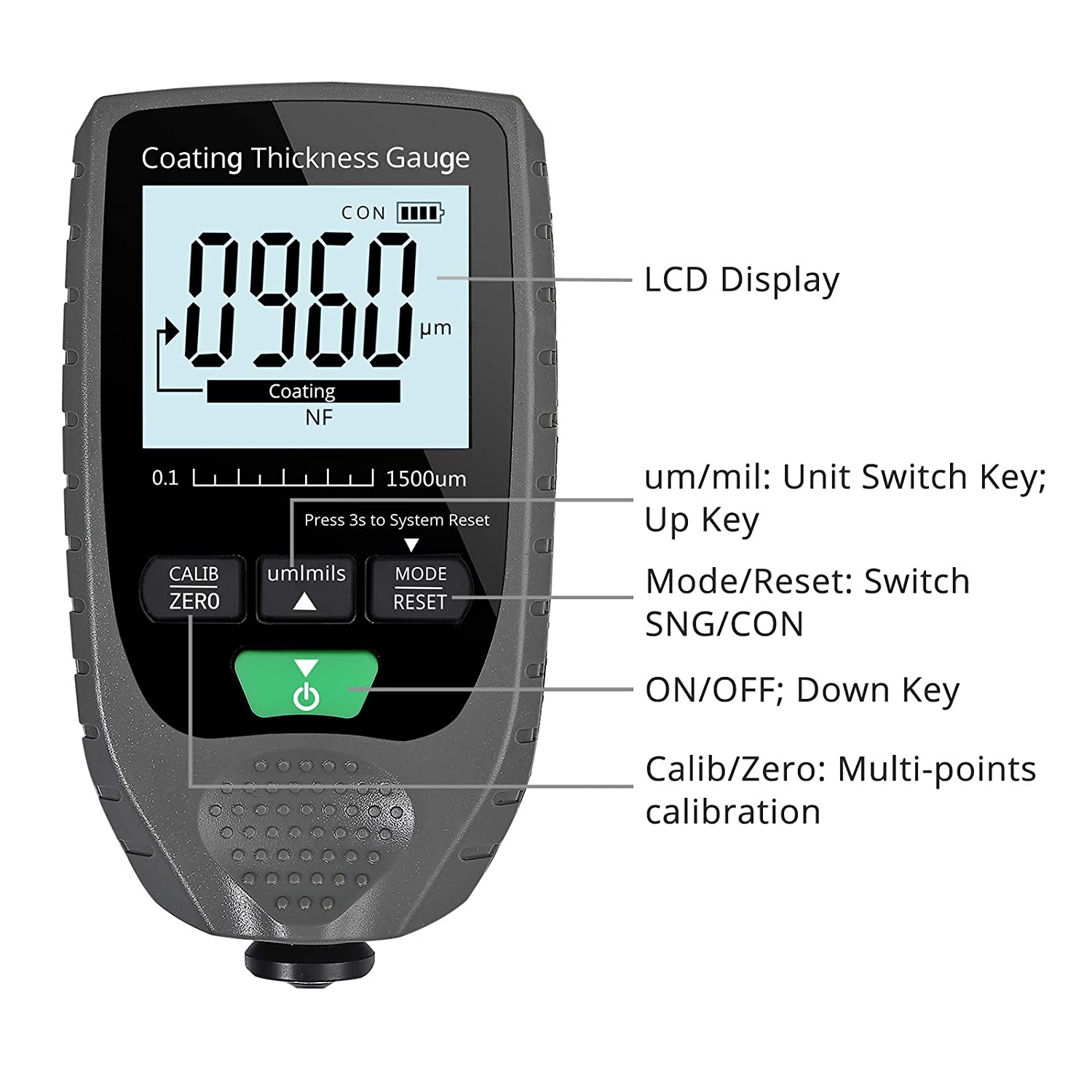

Calibration: Zero Point / Multi-Points
Units: um, mil
Minimum curvature radius convex: 1.5mm
Minimum curvature radius concave: 25mm
Minimum measuring area: Diameter 6mm
Power: 2 x AAA batteries
Operation Environment:
Temperature: 0~40℃(32~104℉)
Humidity: 20%~90%RH

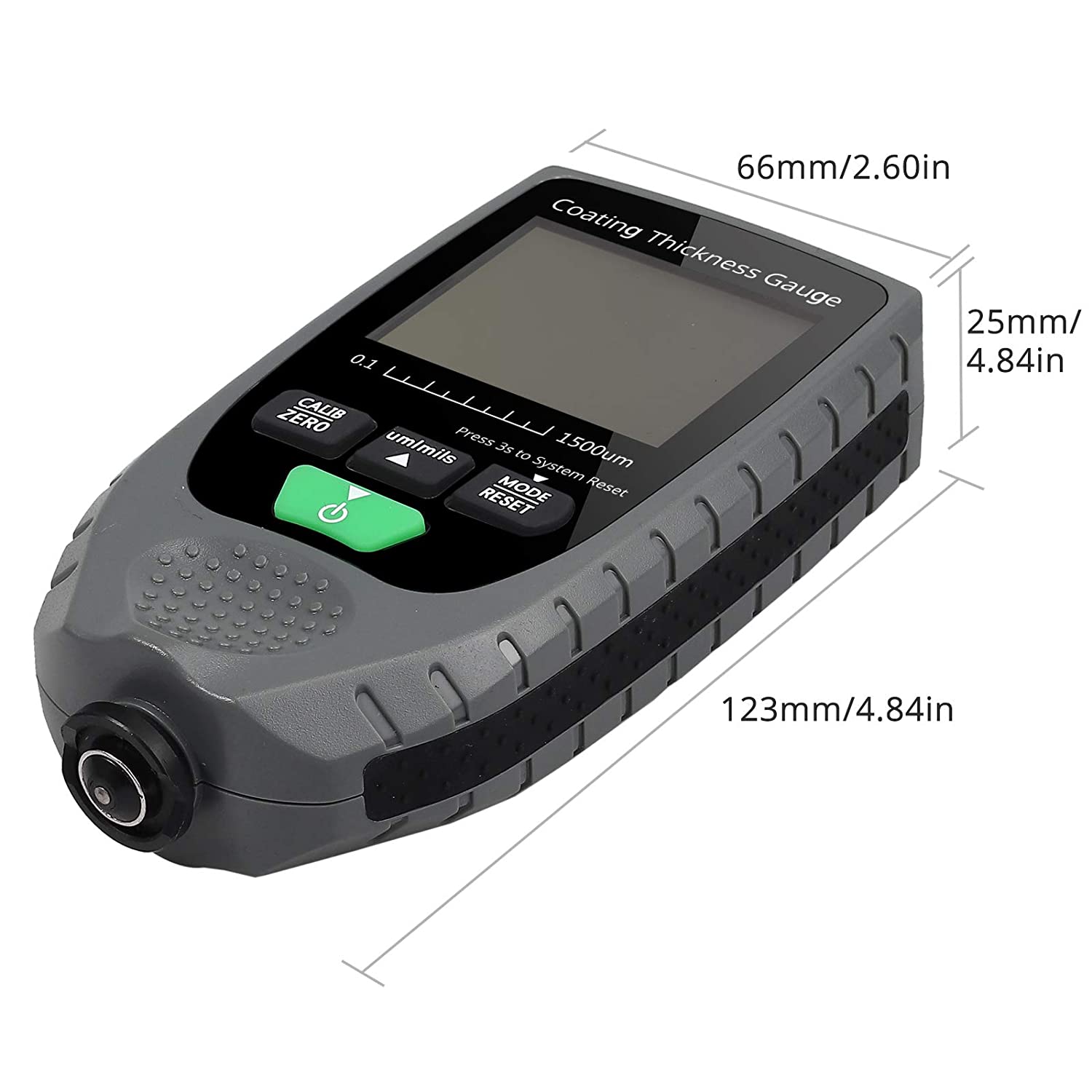

Size: 124mm x 67mm x 28mm/ 4.88” x 2.64” x 1.10”
Weight: 105g (3.70 oz)

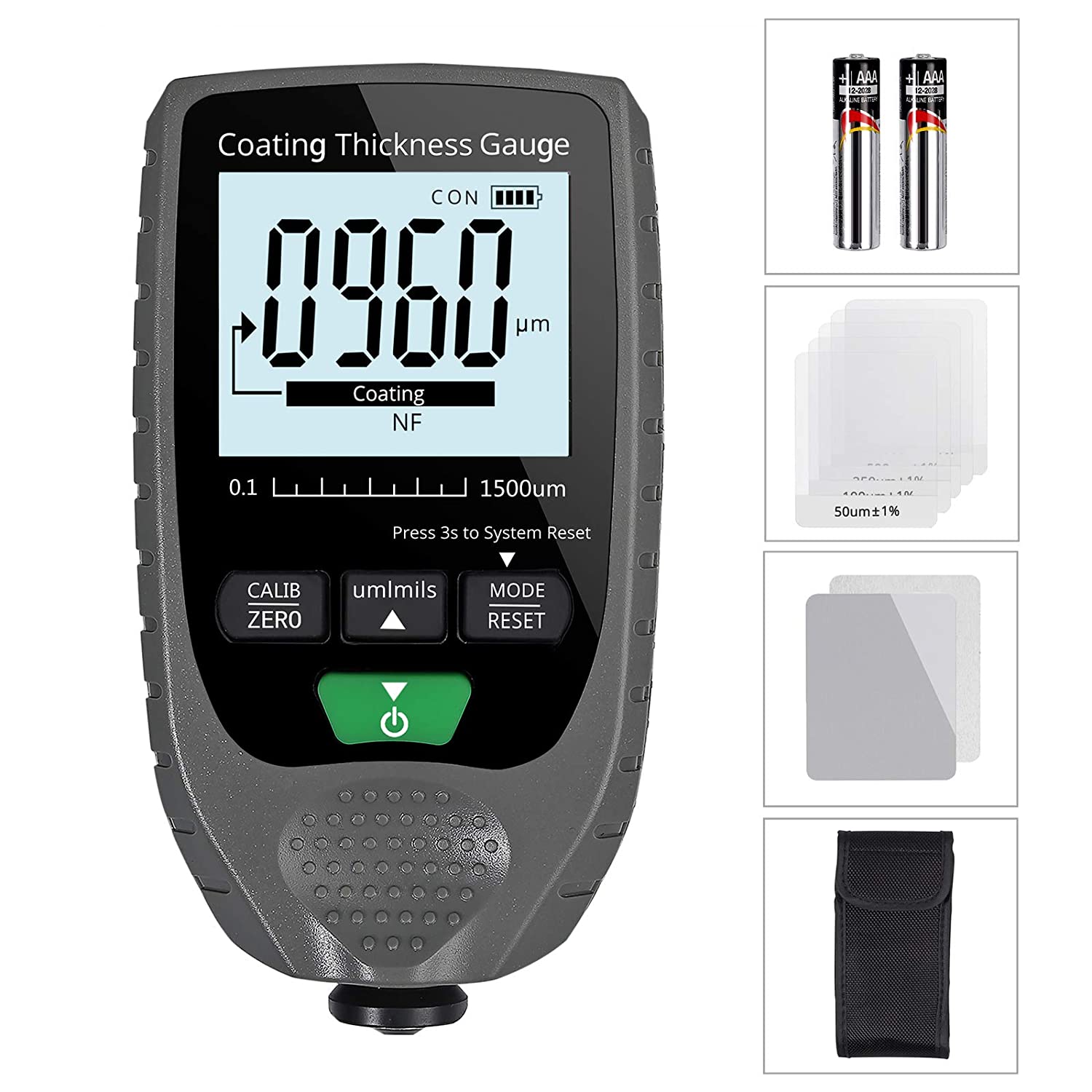

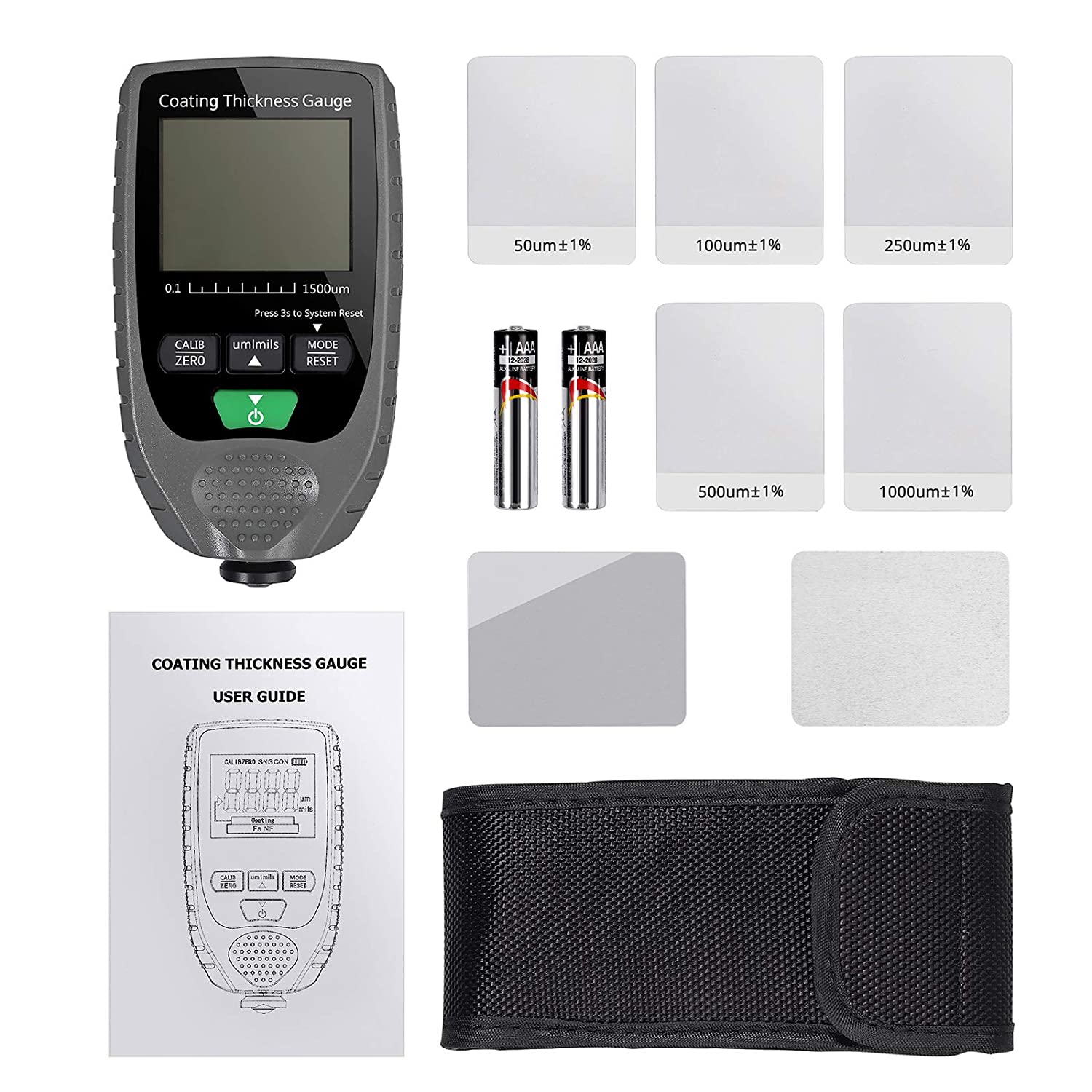

Package List:
1 * Coating Thickness Gauge
1 * Aluminum Substrate
1 * Iron Substrate
1 * Black Box
5 * Calibration Coating Films
1 * English Manual
2 * AAA batteries
